Stitch

New small businesses are trying to establish themselves.

Old small businesses are trying to keep up with the changing times.

For all small businesses, finding support, adapting to a new generation, and creating community has been difficult.

Stitch uses an AI matching algorithm to allow small businesses to collaborate on events to attract new customers.

View project website →
React Native · Supabase · Google Gemini APIFall 2025 · Stanford CS147
Stitch — CS147 best poster
01Empathize9 interviews

We recruited across two user groups — small business owners/managers and customers — visiting businesses on University Avenue and Town & Country Village in Palo Alto during non-peak hours. Our spectrum ran deliberately wide: from a brand-new hair salon to a bookstore open since the Great Depression, giving us insight into resilience at every stage of maturity.

Round 1 — Business owners & customers

Mark — Bubble Tea Manager

New manager, 6 months in. Watches YouTube videos to learn skills. Feels unsupported and isolated in his role.

Taryn — Hair Salon Owner

Brand-new business. Struggles with discoverability despite heavy marketing; handles everything herself.

Amy — Bookstore Owner

90 years in business. Observes corporatization has dismantled inter-business community connections.

Helen — Italian Restaurant

22 years managing. Losing younger customers; no formal network after 40 years of informal connections.

Beatrice — Customer

Shops 90% big stores for goods; frequents small restaurants. Convenience consistently overrides intentions.

Jessie — Customer

High schooler. Relies on peers and research. Reinforces concern about attracting younger demographics.

"You no longer have the ability to form a community among the people who run the businesses."— Amy, bookstore owner (90 years in business)

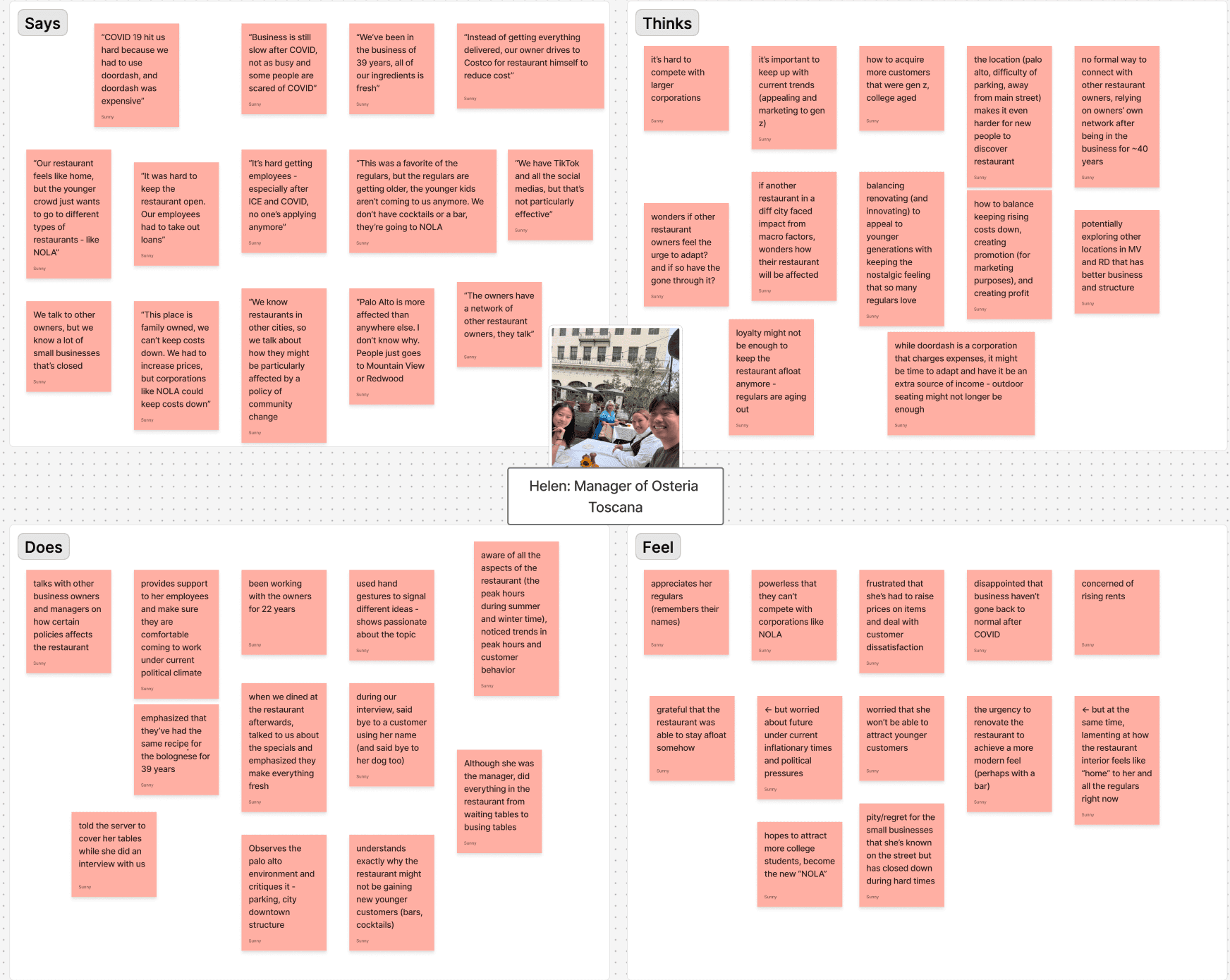

Empathy map for the manager of Osteria Toscana highlighting informal networks and communication needs among small restaurant owners
Empathy map for Manager of Osteria Toscana, creating insights such as “there is no formal way to engage with other small restaurant owners unless relying upon decades of network” and needs such as “Small business owners need a way to communicate with other business owners and form networks.”

Round 2 — Validating collaboration

Val — Mini Cat Town (nonprofit)

Partnered with Gamelandia for board game night; refused other cat cafes over welfare concerns. Showed that values-aligned matching is essential — businesses won't partner with just anyone, even if financially beneficial.

Prof. Eric Liguori

Cited ice cream shop in Clearwater, FL that survived crises by embedding in community events. "Resilience comes from relationships, not just resources." Validated our direction entirely.

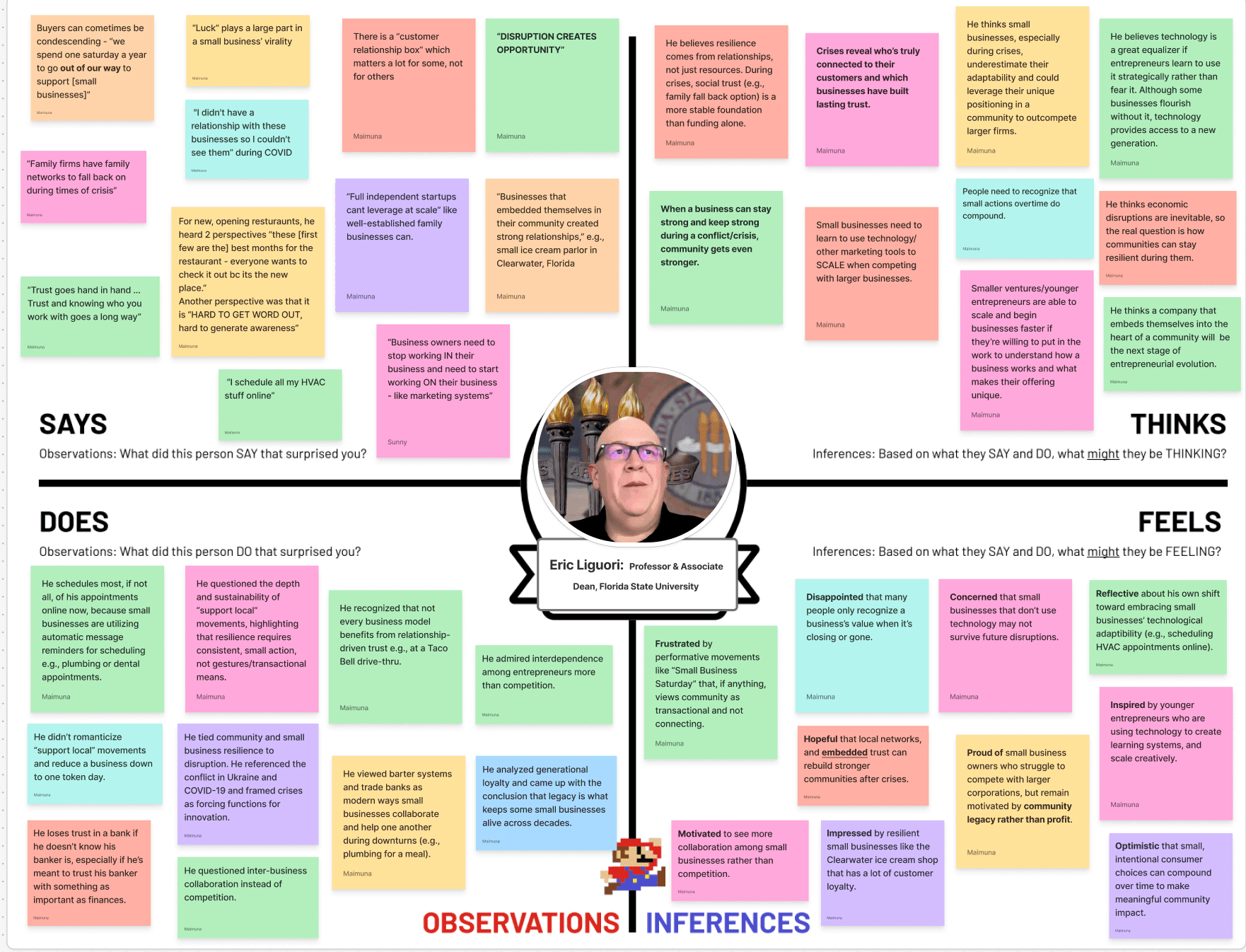

Empathy map for Professor Liguori on resilience through relationships and community embedding during crises
Empathy map for Professor Liguori, who gave us the key insight that “resilience comes from relationships, not just resources” — and that businesses embedded in community “stayed stronger during crises like COVID.”
02DefinePOVs & HMWs

We organized all interview notes into empathy maps in Figma — capturing what participants said, thought, felt, and did — then ran affinity mapping across all nine participants to surface cross-cutting patterns. Three POV statements crystallized the core tensions.

POV statements

Taryn — Hair Salon OwnerNew business

We met Taryn, a mid-30s co-salon owner struggling to attract customers. We were surprised to see that despite saying opening the salon was her dream, she puts no effort into knowing her community or interacting with nearby salons.

We wonder if…

Taryn's definition of success ends at opening day — not at building community or attracting sustained customers.

Game-changing if…

Taryn could envision her business as a community anchor, seeing competitors as collaborators and embedding herself in the neighborhood.

Selected How-Might-We's

HMW convince isolated owners like Taryn that community connection and collaboration is profitable?
HMW reduce the sense of competition between similar businesses in one area and promote collaboration instead?
HMW support owners who view competitors as threats and convince them of the value of viewing them as community partners?
Beatrice — CustomerGrandmother of 2

Retired grandmother who shops 90% big stores but exclusively eats at small restaurants. Surprised by her sector-specific loyalty — she genuinely wants to support local, but convenience and incentives consistently win.

We wonder if…

She feels conflicted between a moral obligation to support small businesses and the superior convenience and quality assurance of big chains.

Game-changing if…

Beatrice had a way to get quality assurance and discover small businesses that offer the same level of service as chains.

Selected How-Might-We's

HMW make discovering new small businesses feel natural and rewarding for customers who already care about shopping local?
HMW make the warmth of human connection the defining reason people choose small businesses over chains?
HMW make discovering small businesses feel like finding hidden gems?
Mark — Bubble Tea Manager6 months in role

First-time manager, only 6 months in, watching YouTube tutorials to figure out how to manage. Surprised he has no structured support — operating entirely through trial and error.

We wonder if…

He feels inadequate as a manager and must rely on trial and error to solve problems instead of drawing on experience or a peer network.

Game-changing if…

Mark felt validated while being encouraged to grow, transforming his lack of preparation into confidence and motivation.

Selected How-Might-We's

HMW support early-career managers with experienced mentors for community-specific challenges?
HMW enable new managers to understand local customer behaviors, competitor landscape, and community dynamics?
HMW create opportunities for inexperienced managers to learn from peers facing similar challenges in their area?
Opportunity: Small businesses need accessible tools to find values-aligned collaboration partners for community event embedding — addressing isolation, discoverability, knowledge gaps, and resilience simultaneously while demonstrating clear financial value.
03Ideate3 concepts tested

After generating HMWs we derived three top solution directions and ran experience prototypes on each to test their core assumptions before committing to a path.

AI Collaboration Matcher — Pursued

AI matches businesses based on shared values, then surfaces relevant events and conversation starters. Tested with Benedict (On-Call Café manager) using a card-choice prototype — he chose financial gain as the top motivator. Assumption validated: businesses will act on matches if relevant and low-effort.

AI Milestone & Tutorial System — Abandoned

AI-driven milestone tracking to build manager confidence. Tested with Toby (On-Call manager). Stress dropped (4→1 on scale) but confidence and feasibility scores were unchanged. AI milestones didn't fit On-Call's values. Assumption invalidated.

AR/VR Scavenger Hunt — Partial validation

Gamified discovery of local businesses via QR-code clue hunt with prize at the end. Three Stanford students visited every location and became more engaged at each stop. Validated for awareness; doesn't address B2B collaboration. Not the primary solution.

We also evaluated AR, VR, web, wearable, and robot form factors before converging on mobile — the most accessible modality across all ages and tech skill levels, with no hardware requirements, and the only format that natively supports a community social feed.

Ideation board and concepts from the Stitch design process

To validate that our solution occupied a genuinely unmet position in the market, we mapped Stitch against four existing platforms. Every competitor addressed parts of the problem — but none combined values-based matching, joint event planning, and a B2B-only focus in a single tool.

BNI

Business Network International

340K+ global members organized into local chapters of one business per industry. Weekly structured meetings build deep trust and generate billions in referrals over 40+ years.

Key difference

BNI is referral-focused across different industries. Stitch enables collaboration between complementary, values-aligned businesses for joint events — with none of the ~$700/yr fees or mandatory weekly meetings.

Alignable

8M+ member digital network

Location-based small business networking across 35K+ US/Canada communities. Free and premium tiers with educational content and discussion groups.

Key difference

Alignable is broad networking — it can feel like “LinkedIn for small businesses” without deep engagement. Stitch specifically facilitates joint event planning with values-based matching, not just generic connections.

Eventbrite / Meetup

Consumer event discovery

Large audiences for event discovery with geographic and interest-based filtering. Easy to create and promote one-off events to the public.

Key difference

These are consumer-facing platforms: events are one-off and there is no values vetting or sustained partnership support. Stitch is B2B-only, built around recurring collaborations, not attendance.

Chamber of Commerce

Traditional membership orgs

Established community presence, regular networking events, and connections to local government. Strong credibility from decades of operation.

Key difference

Chambers offer general, broad networking without targeted matching. They often feel outdated and lack digital tools. Stitch provides targeted, values-based matching for specific joint opportunities with a digital-first workflow.

FeatureStitchBNIAlignableEventbriteChamber
Values-based matching
Joint event planning
Community event integration
Local business focus
Digital-first platform
Collaboration (not just referrals)
Business owner tool (B2B)
Structured matching algorithm
04PrototypeLo → Med → Hi-fi

We designed three task flows covering the full collaboration lifecycle. Each round informed the next.

  • Simple task: Send an AI-templated outreach message to a matched business from the recommendations feed.
  • Moderate task: Create a formal co-hosted event ('Stitch') from an existing conversation, requiring two-sided approval before publishing to the community page.
  • Complex task: After an event ends, log post-event feedback (star rating + private notes) and optionally set as a recurring event — weekly, bi-weekly, monthly, or quarterly.

Design choices

Two parallel decisions — home structure and how the AI-driven feed should behave — both converge on a single, testable hi-fi pattern.

1 · Home & feed structure

Home screen layout
Communities page
Events tab
Simple Feed page with an AI toggle

2 · AI recommendation mode

AI decision feed
When AI was recommending a business, whether the home view should show a full profile (bio and historical posts).
If not, the feed would mimic a timestamped social feed (similar to Instagram).
On: comprehensive business profile in the feed.Off: normal chronological feed.

Lo-fi

Hand-sketched digitally on iPad for a clean testing surface. Four small business owners and employees navigated all three flows while thinking aloud. Feedback primarily flagged labeling — the difference between "+ Post" and "Stitch" was unclear, and the Community page was hard to find for event management.

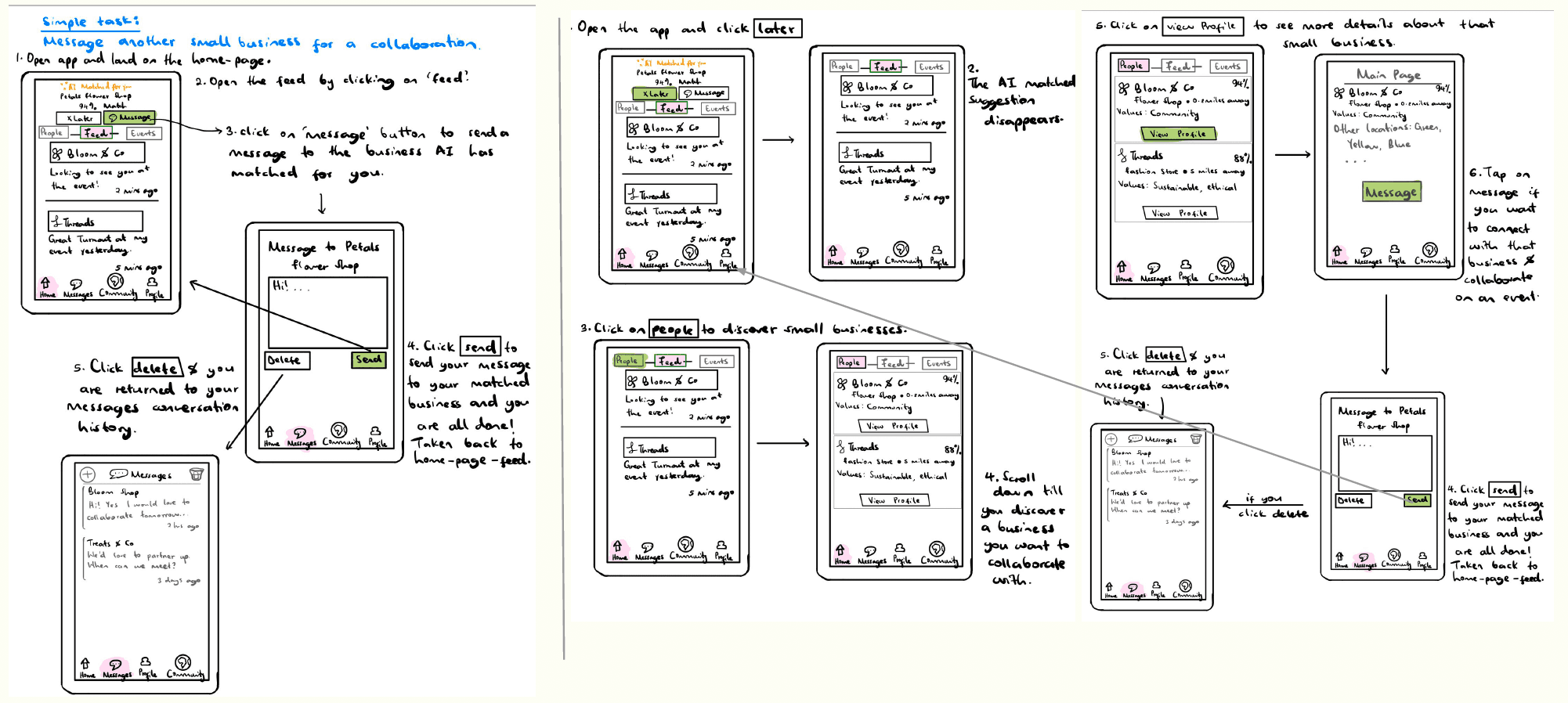

Lo-fi storyboard for the simple task flow — AI-templated message to a matched business
Storyboard — simple task: sending an AI-templated outreach message to a matched business from the recommendations feed.
Lo-fi storyboard for the moderate task flow — co-hosted Stitch event with two-sided approval
Storyboard — moderate task: creating a co-hosted Stitch event from an existing conversation, with two-sided approval before publishing.

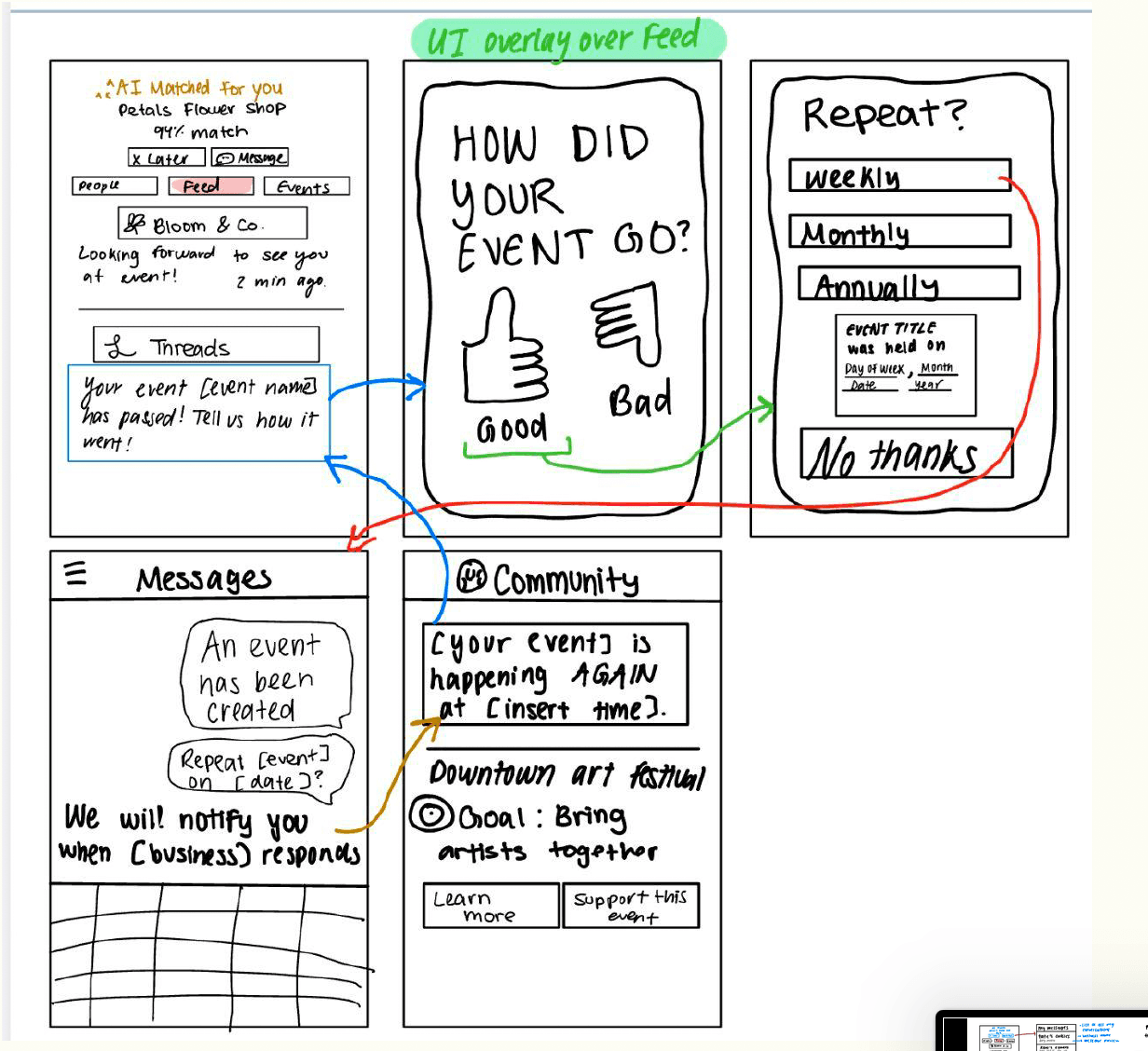

Lo-fi storyboard for the complex task flow — post-event feedback and recurring events
Storyboard — complex task: logging post-event feedback and optionally setting a recurring event cadence.
User testing the lo-fi Stitch prototype with Brain, hair salon owner
Testing our lo-fi prototype with Brain, owner of hair salon.

Med-fi

Full Figma prototype with consistent visual design. Heuristic evaluation by external evaluators surfaced 34 violations, prioritized by severity. Most common: Consistency & Standards (10 violations), Aesthetic & Minimalist Design (4), User Control & Freedom (4). All severity-3+ issues were addressed in hi-fi.

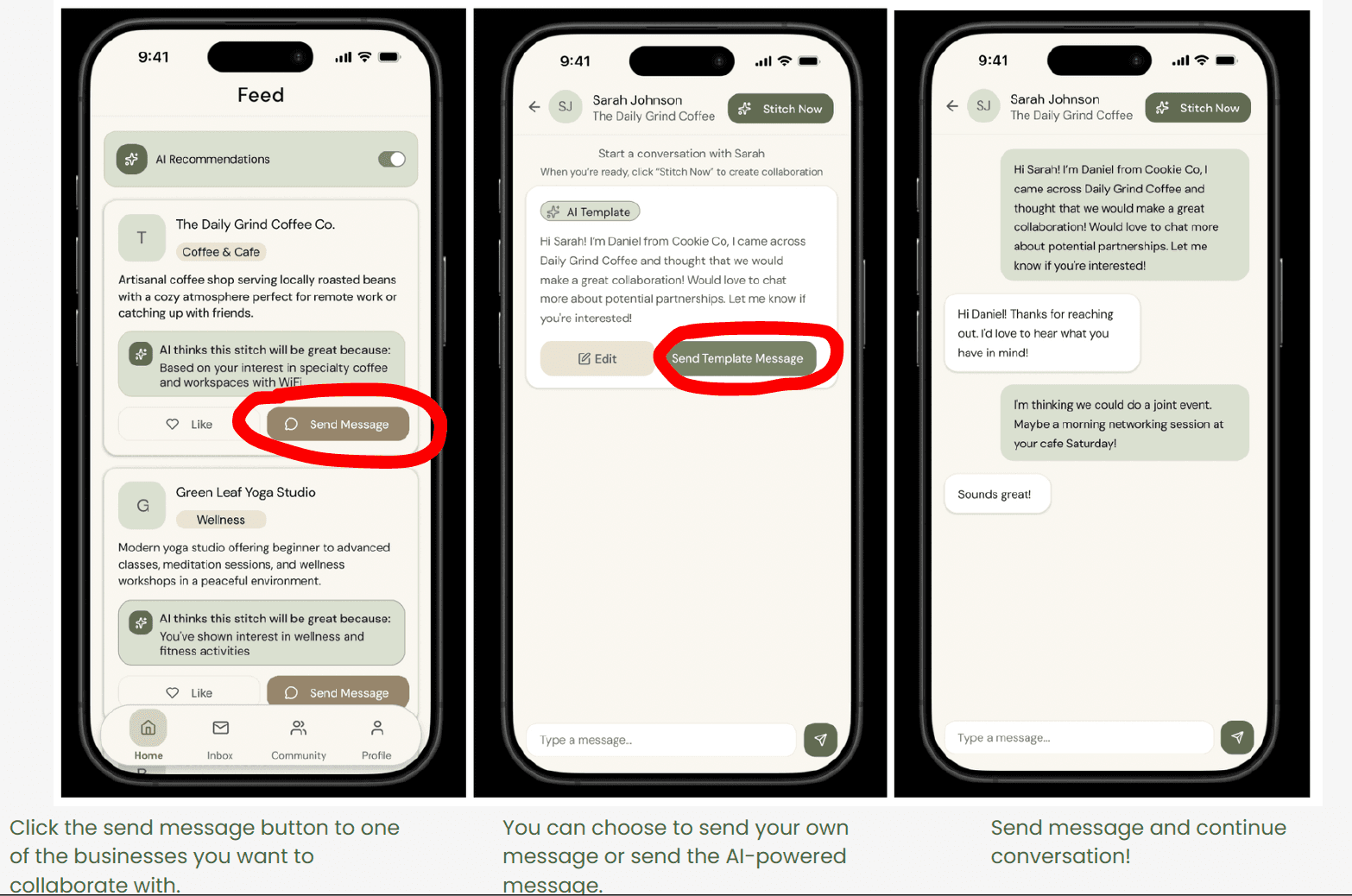

Med-fi Figma screens for the simple task — sending a message to collaborate
Simple task: send a message to collaborate.

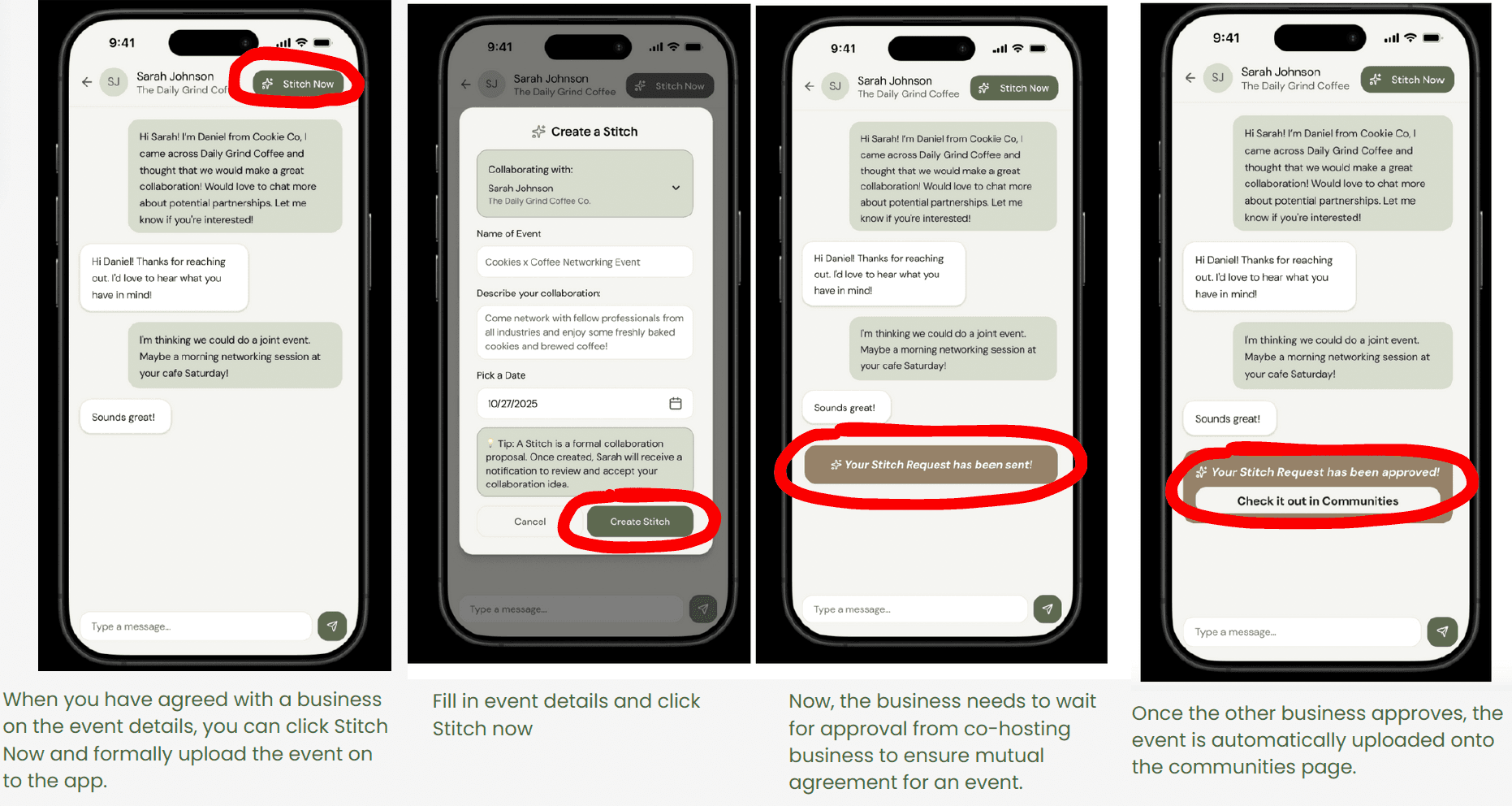

Med-fi Figma screens for the medium task — posting an event to collaborate
Medium task: post an event to collaborate.

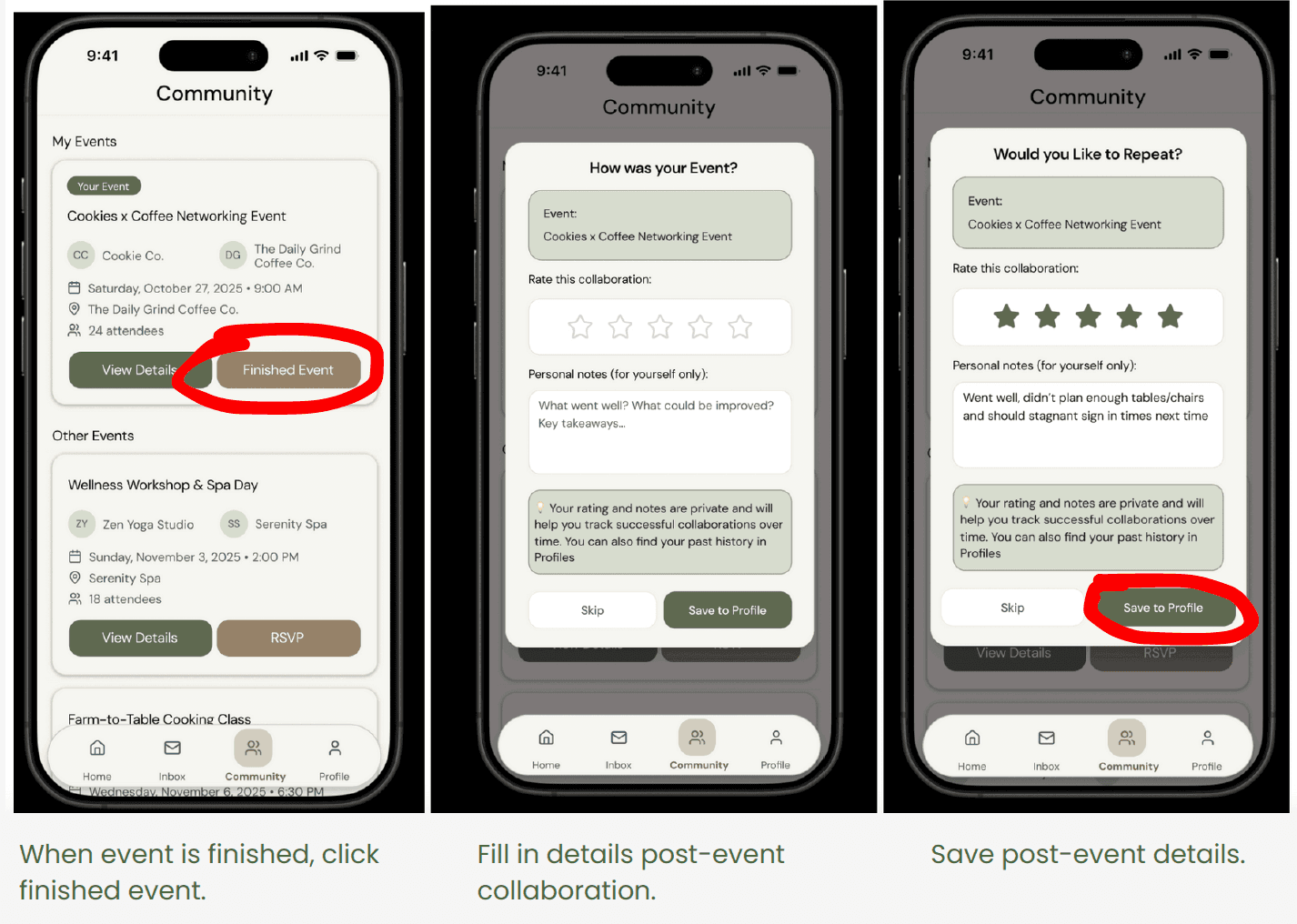

Med-fi Figma screens for the complex task — collaborating on an event multiple times
Complex task: collaborate on an event multiple times.

Hi-fi — production React Native app

The hi-fi prototype is a fully functioning mobile app, not just a clickable prototype. We turned our Figma prototype into a functioning app using React Native code, with a backend on Supabase and an AI layer on top.

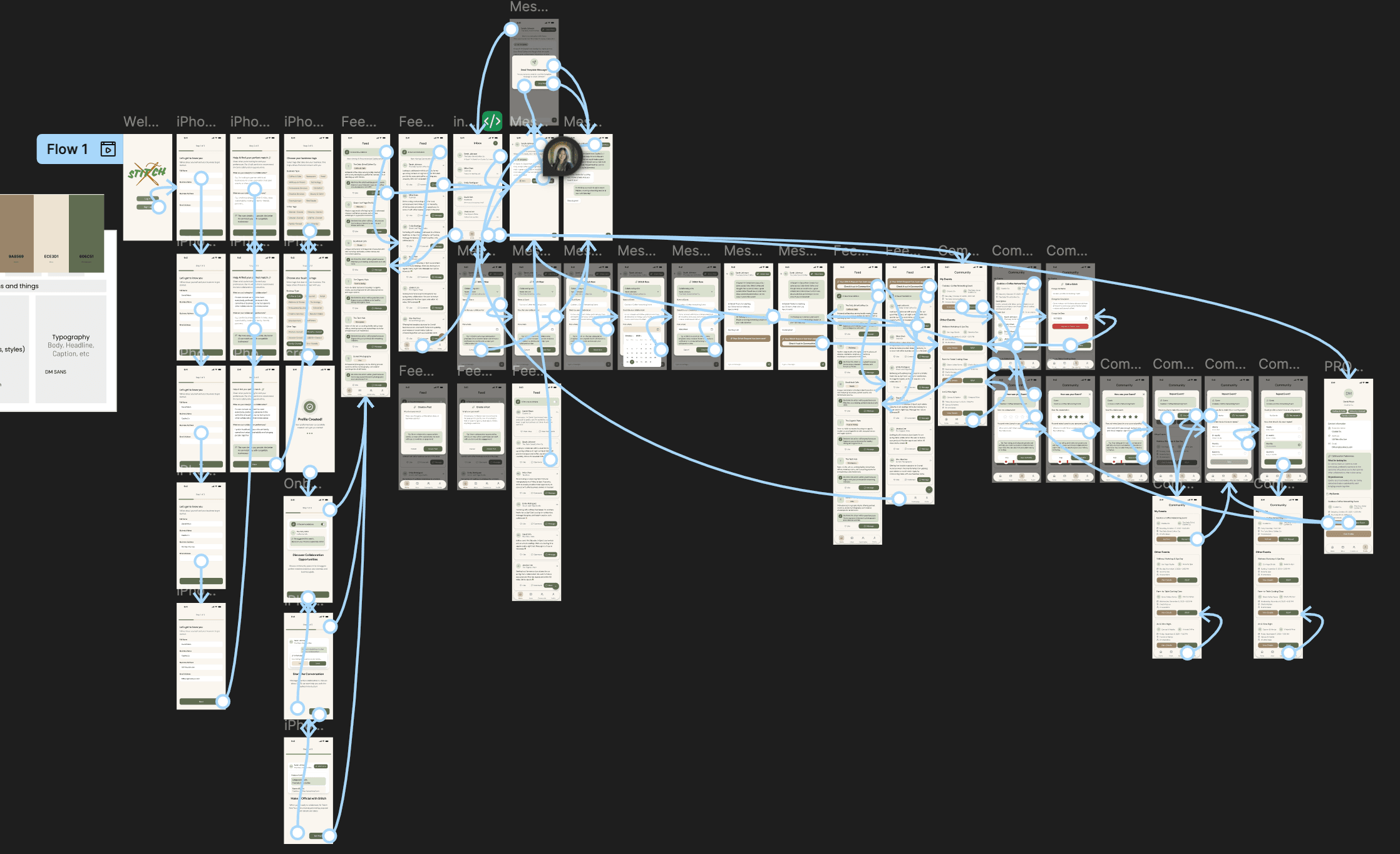

Hi-fi Figma prototype screens for the Stitch mobile app
Hi-fi screens in Figma before handoff to React Native.

Figma

UI/UX design & prototyping

React Native

Cross-platform mobile framework

Expo

Dev environment & device testing

Supabase

Auth, profiles, events, feed posts

Google Gemini API

Values matching + event idea generation

VS Code

IDE

The Gemini integration makes real API calls on each feed load: it reads each business's values statement and bio, then generates both a compatibility explanation and a one-sentence suggested event idea — giving every match a human-readable reason rather than an opaque score. Supabase handles all persistent state asynchronously, including sign-in, profile data, hosted events, and community feed posts.

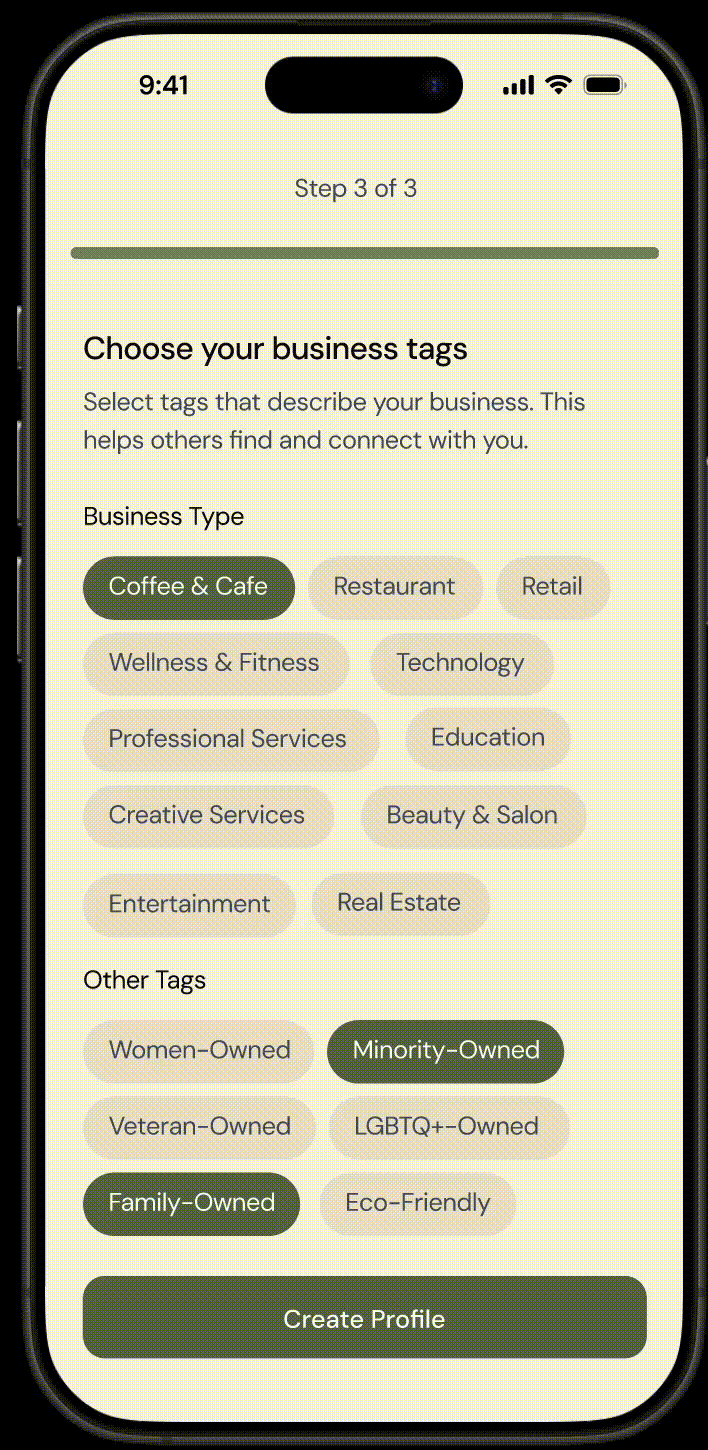

Stitch app — onboarding process
Onboarding process

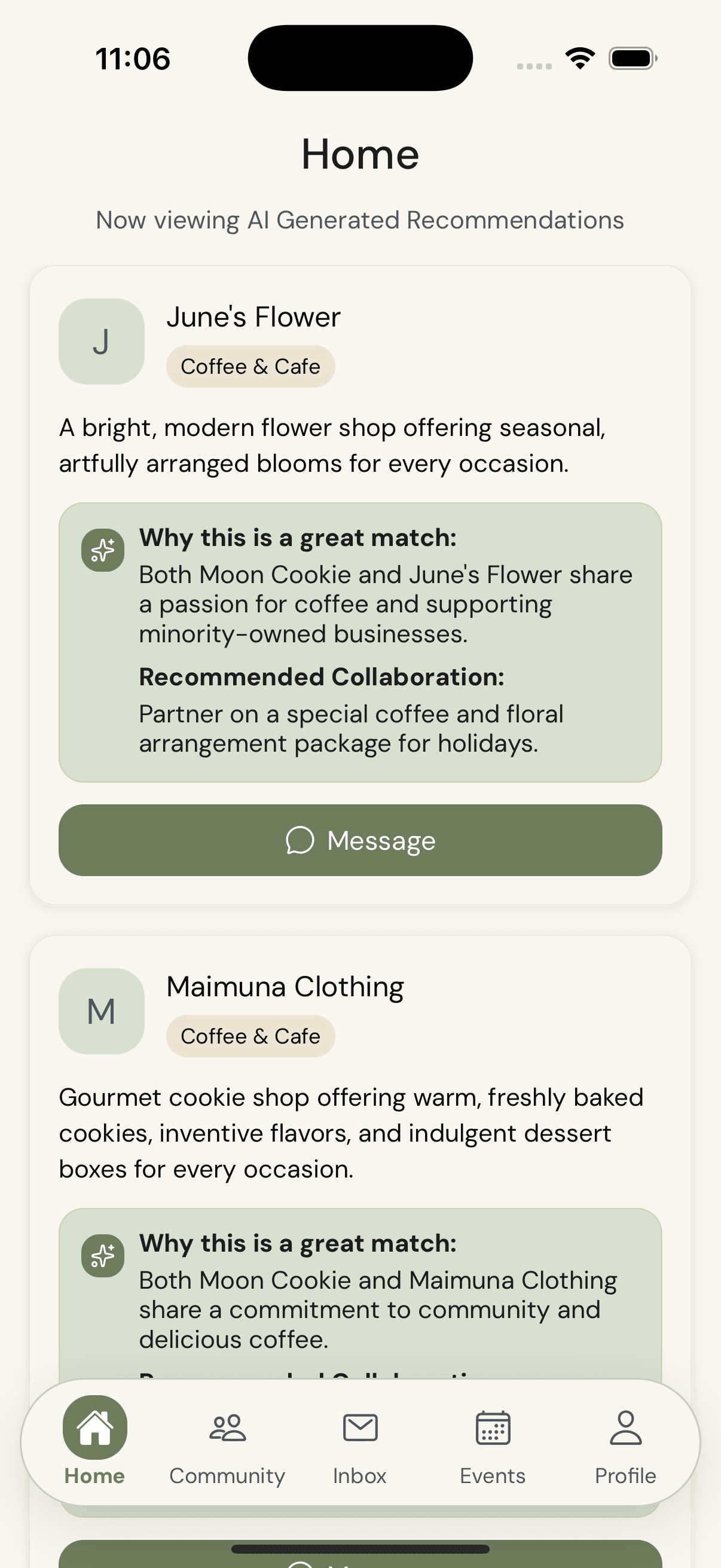

Stitch app — home page
Home page

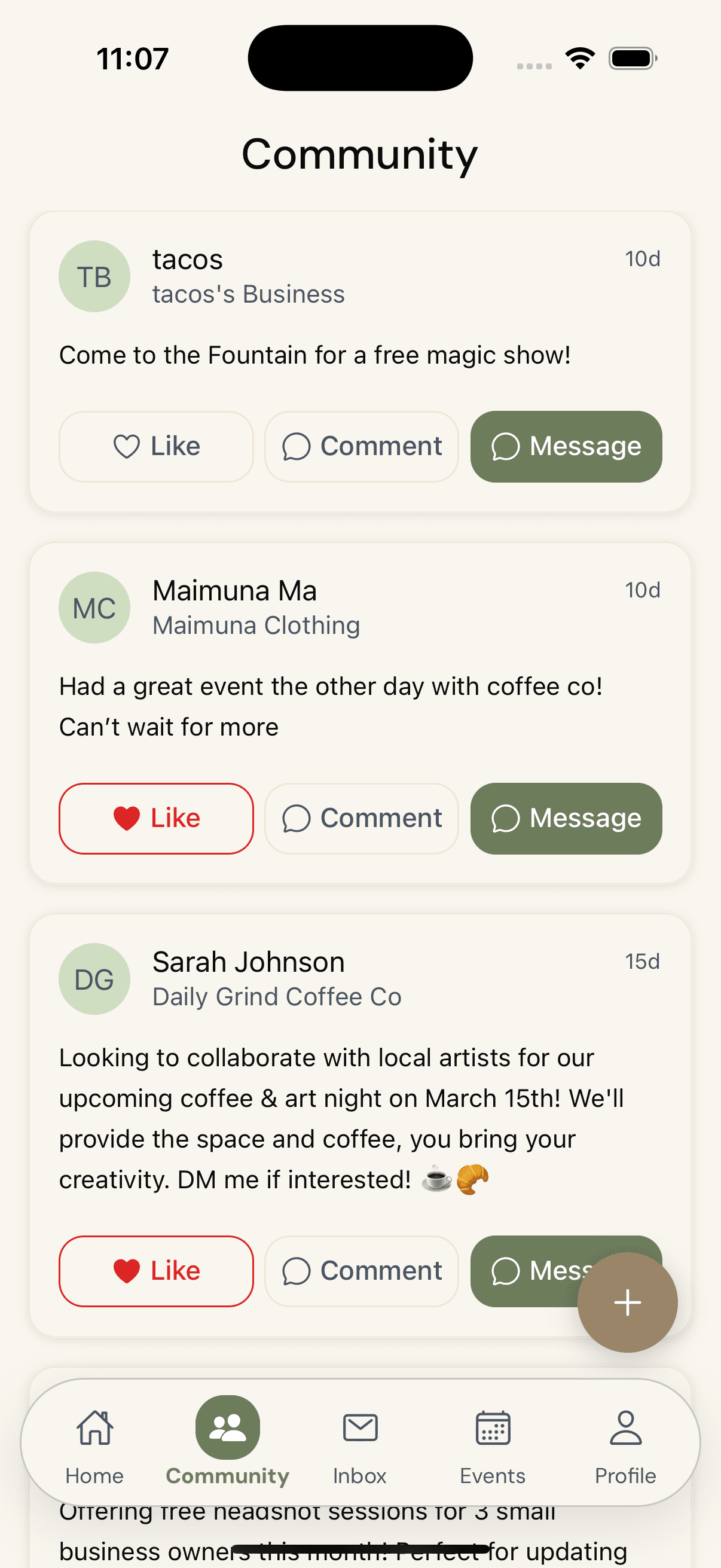

Stitch app — community page
Community page

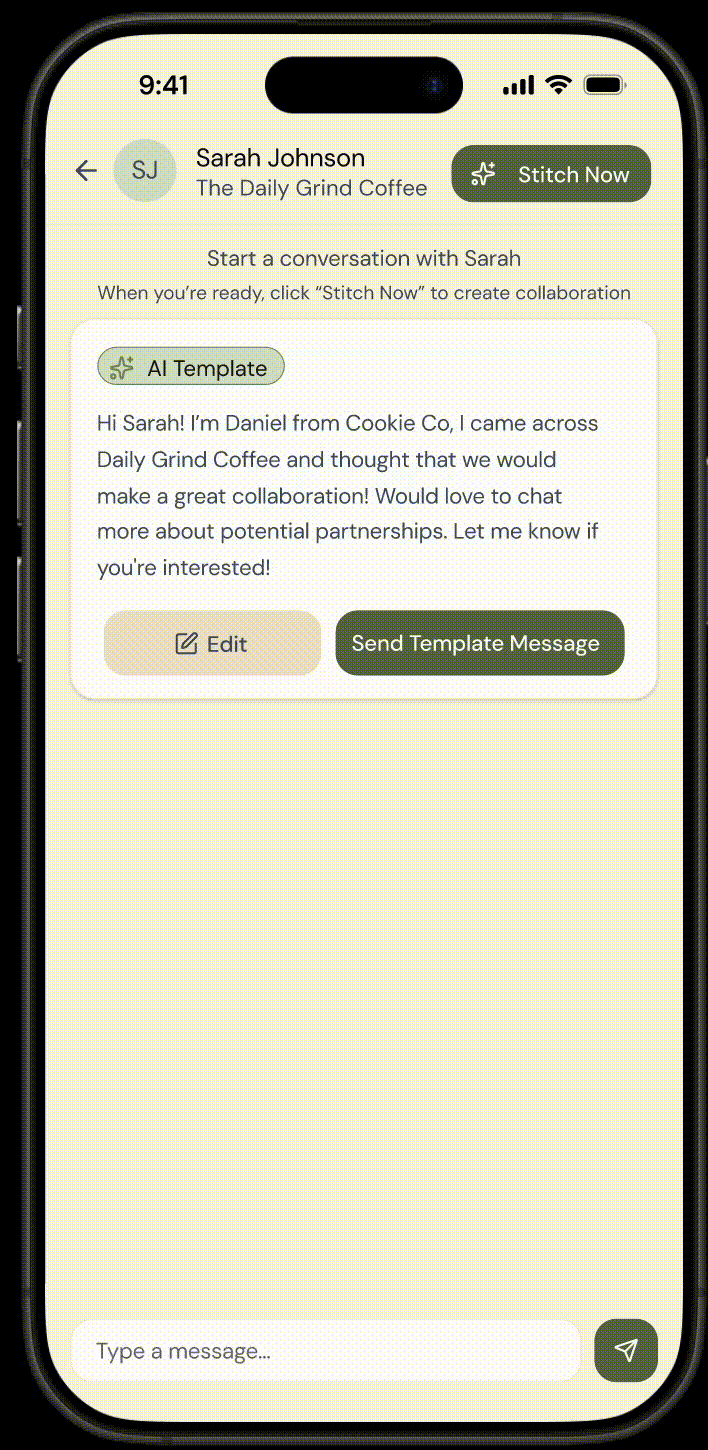

Stitch app — send a message
Send a message

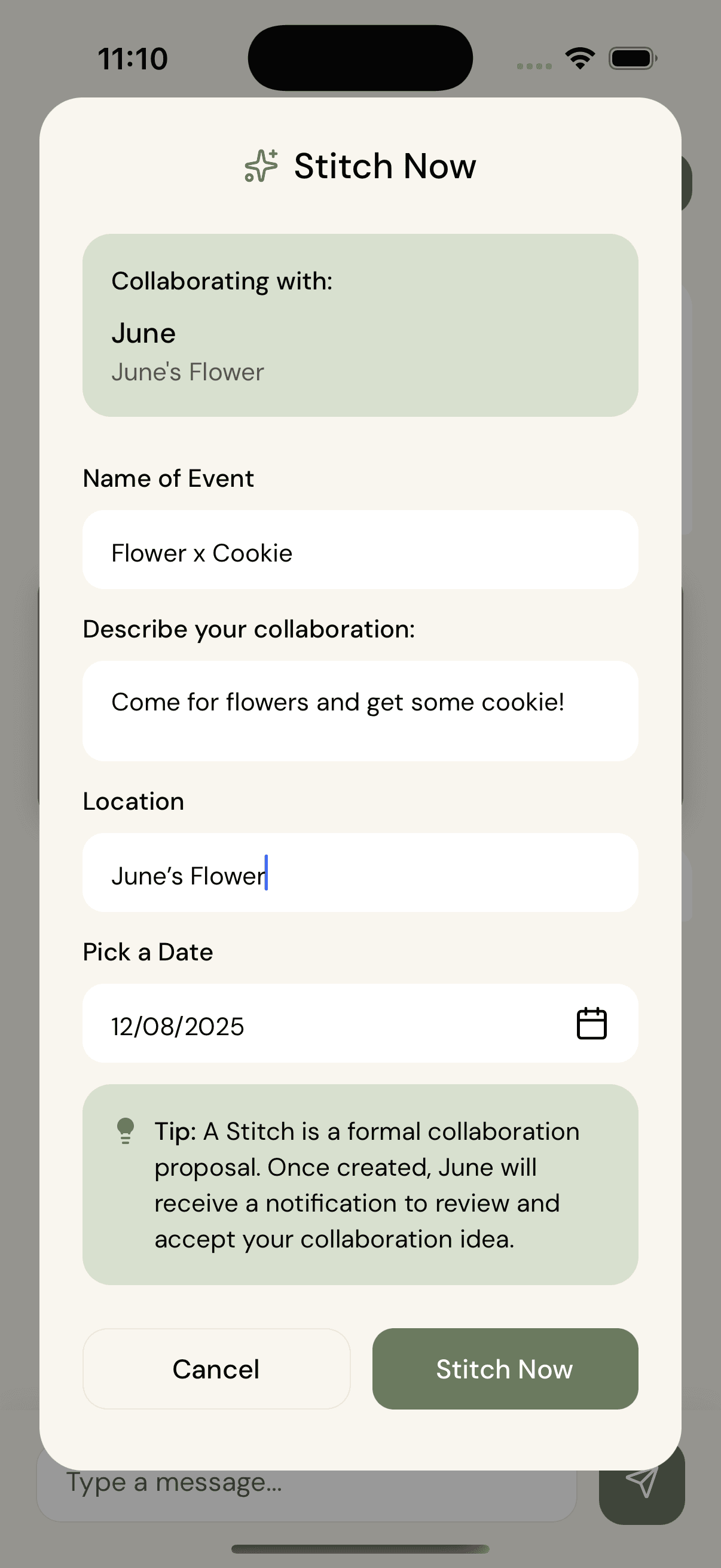

Stitch app — create a collaboration
Create a Stitch (collaboration)

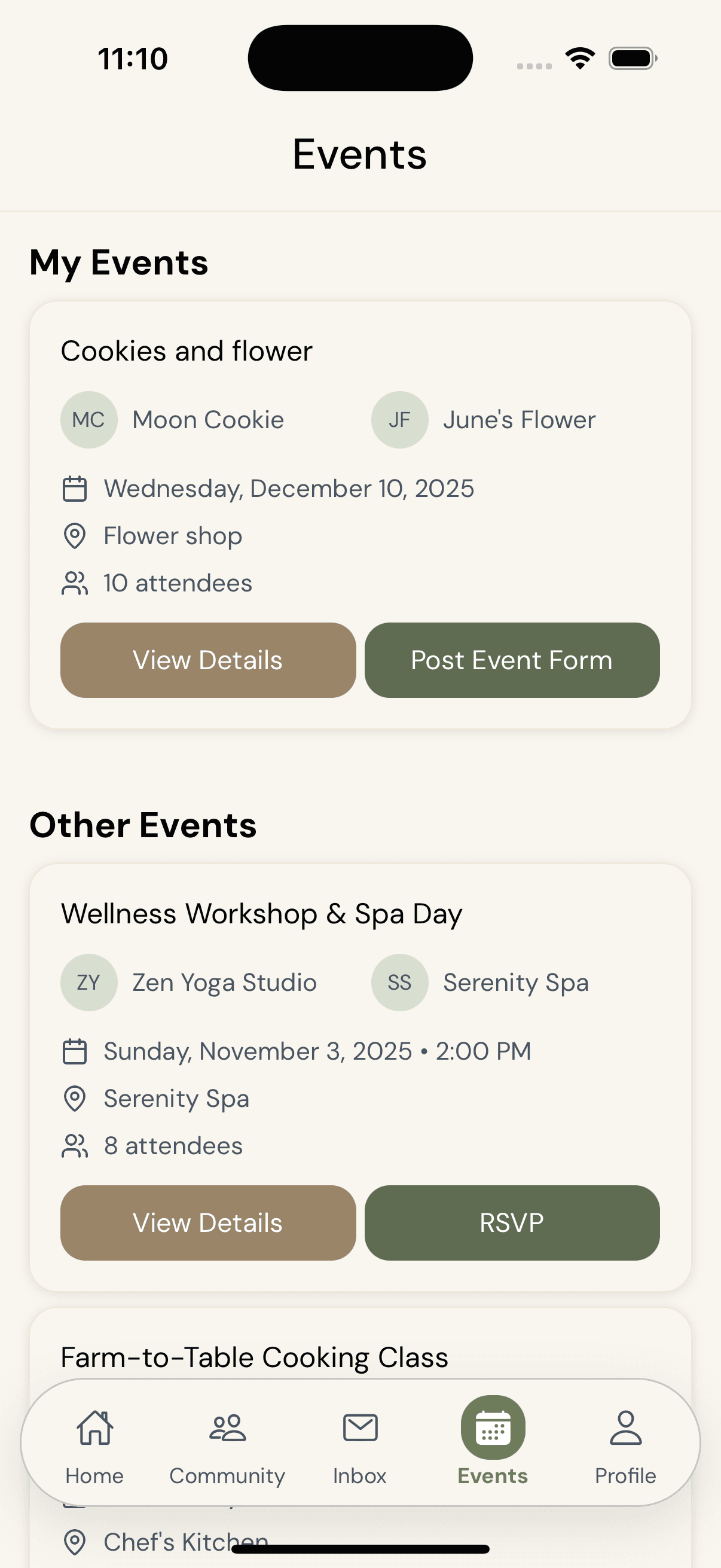

Stitch app — events page
Events page
05Test3 rounds

Lo-fi user testing results

9/10avg. eagerness rating
5total misclicks
11avg. clicks per flow
4participants

All four participants were small business owners or employees. Strong navigability across every task flow. Primary feedback: labeling needed work — the difference between "+ Post" and "Stitch" was unclear, multi-business message templates were missing, and the Community page was hard to discover for event management.

HIGH LEVEL SUMMARY OF RESULTS

Severity Breakdown

  • Sev 0: 1 (2.9%)
  • Sev 1: 14 (41.2%)
  • Sev 2: 10 (29.4%)
  • Sev 3: 8 (23.5%)
  • Sev 4: 1 (2.9%)

Below is the highest-severity navigation fix (Sev 4), followed by before/after screens for the feed and community pages.

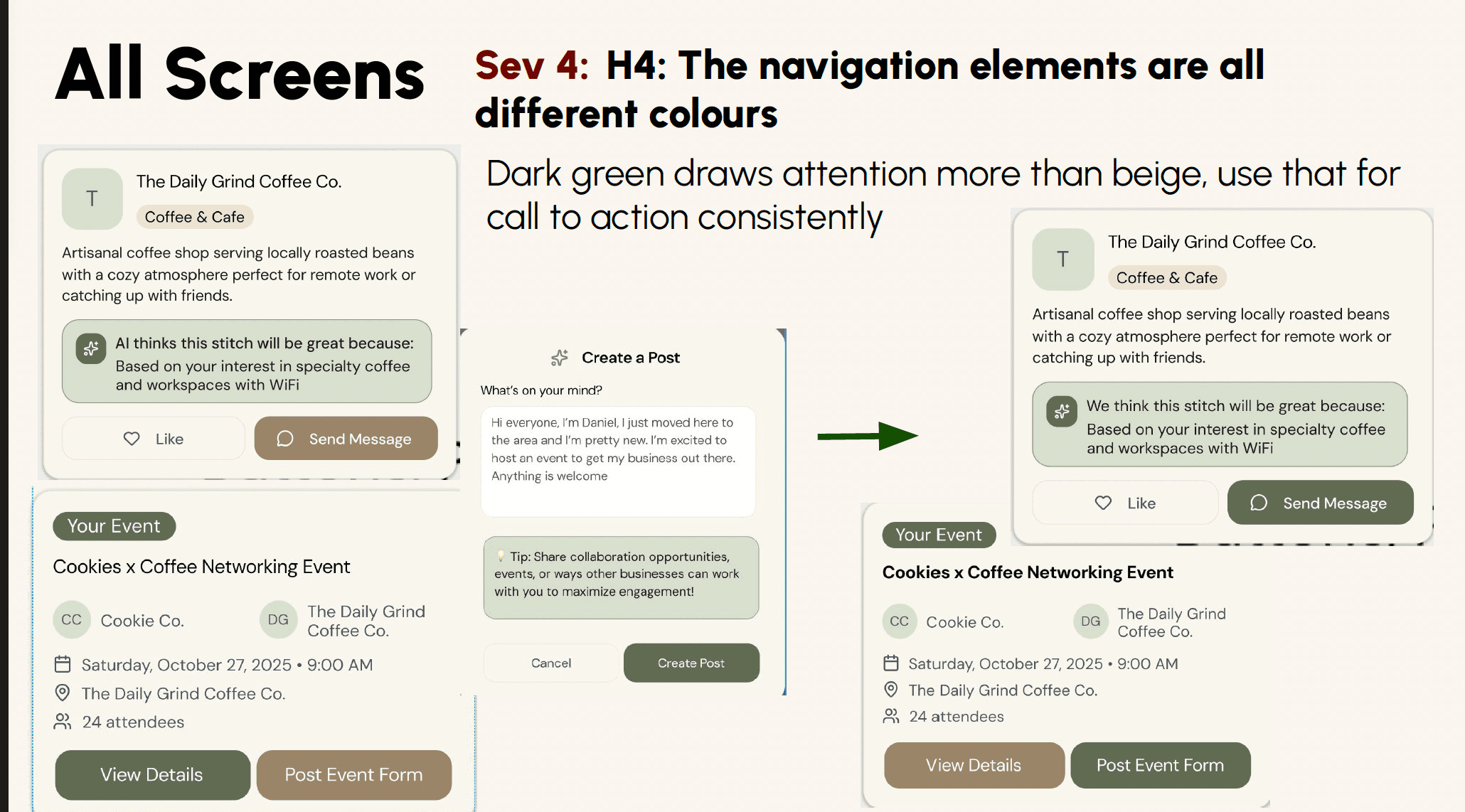

Stitch app — all screens showing Sev 4 heuristic fix: consistent primary CTA color (dark green) across navigation and actions

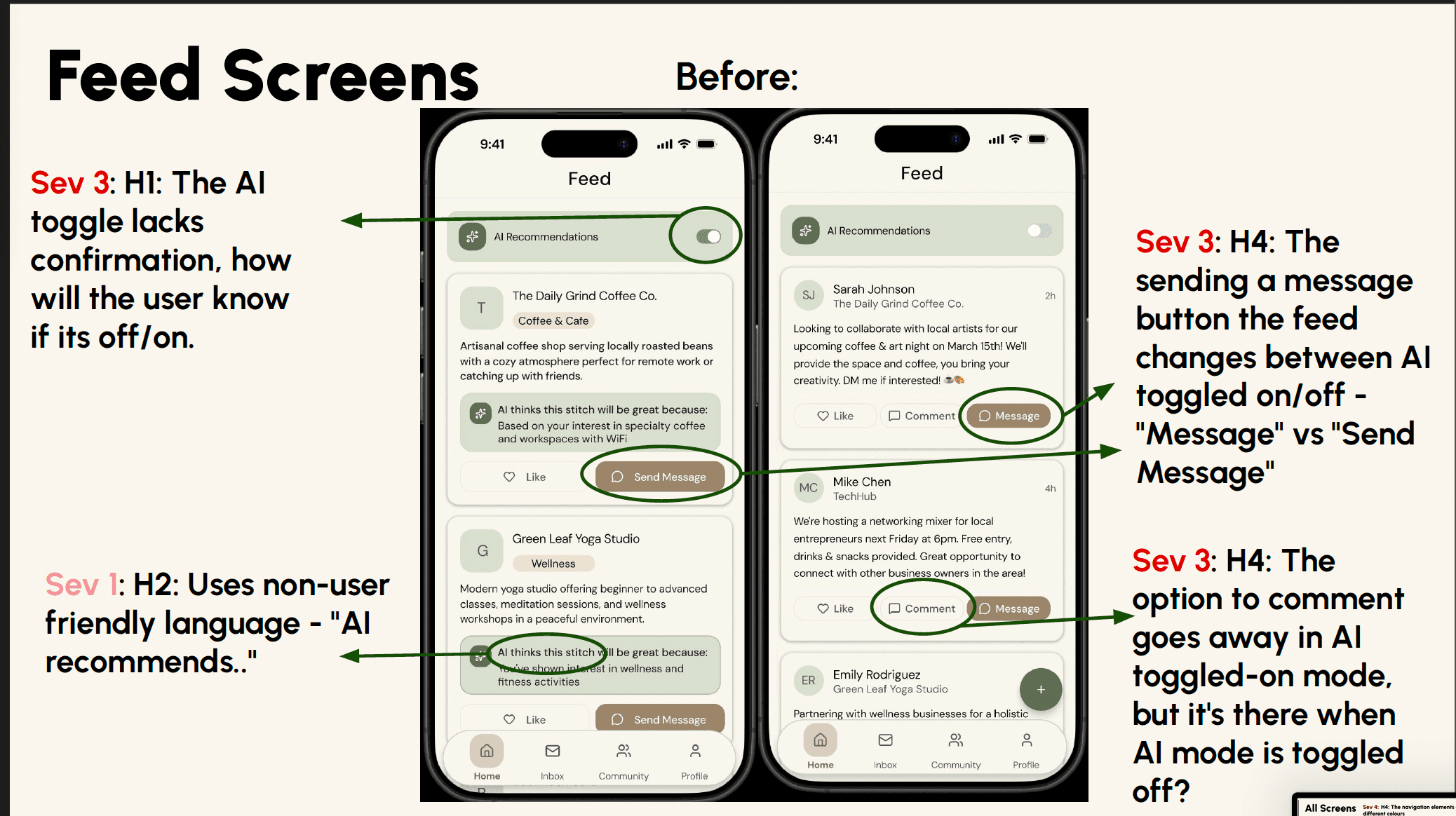

Stitch feed screens before hi-fi — med-fi heuristic fixes (Sev 3)
Before (med-fi)

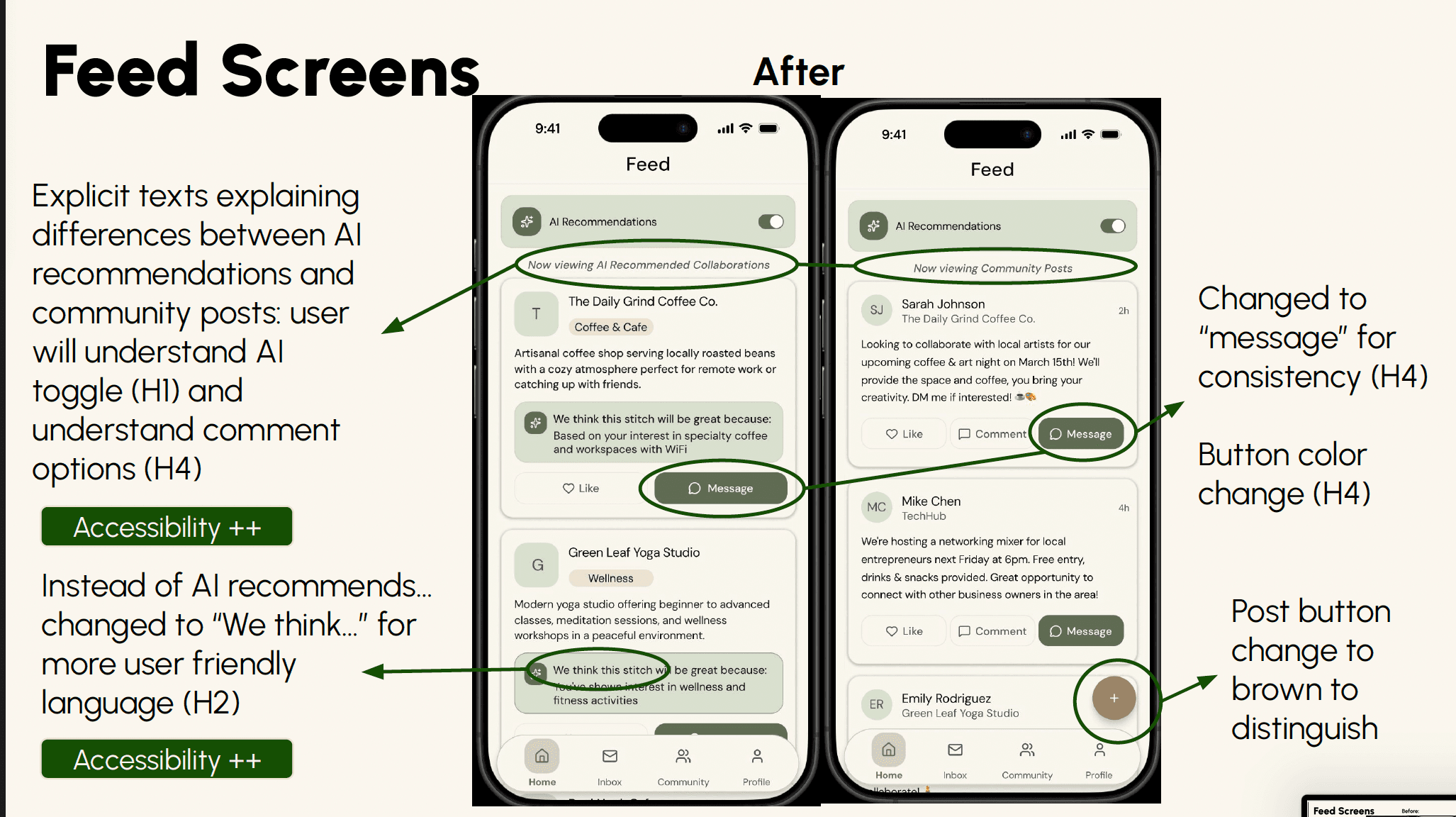

Stitch feed screens after hi-fi — Sev 3 issues addressed
After (hi-fi)

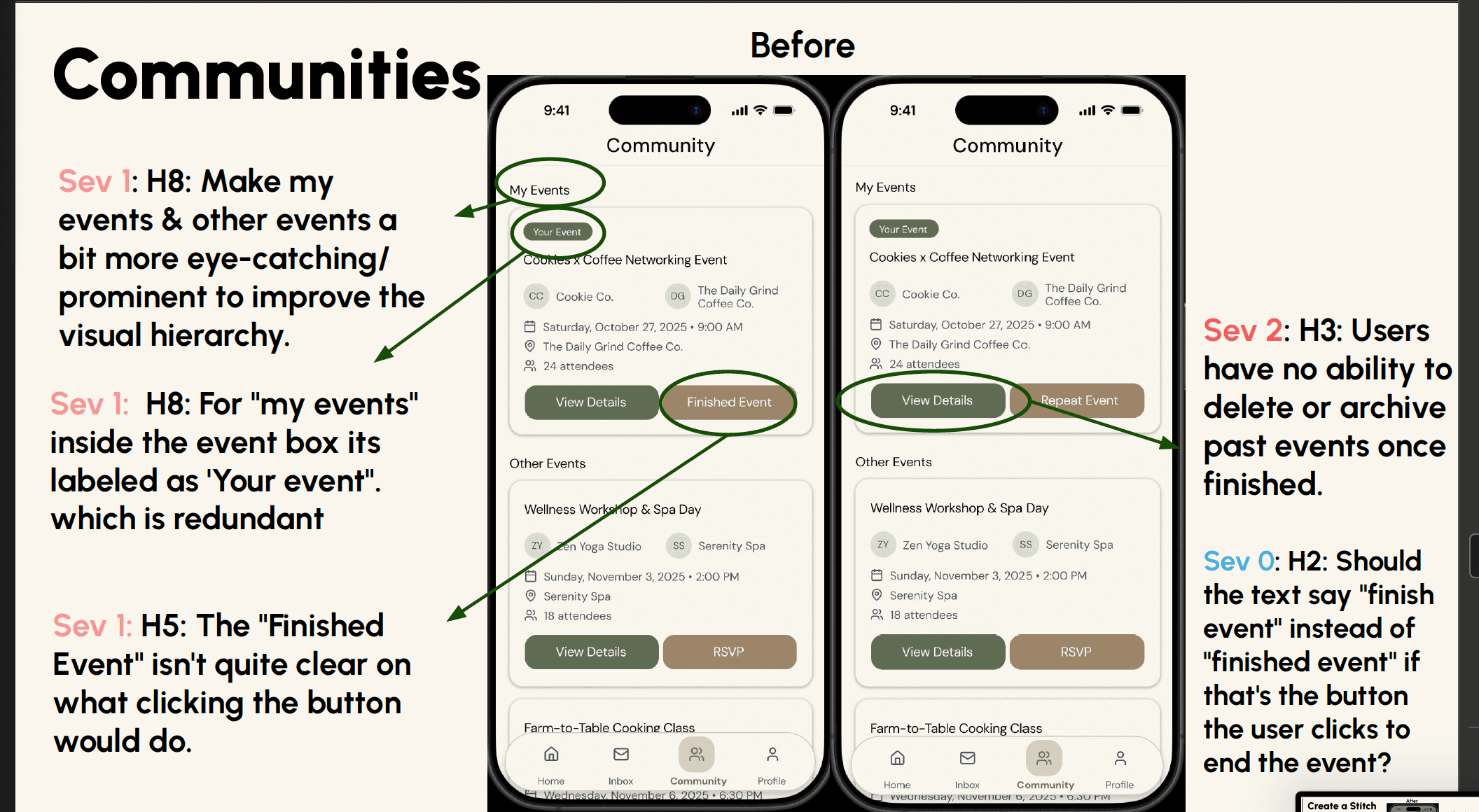

Stitch community page before hi-fi — med-fi heuristic fixes (Sev 1–2)
Before (med-fi)

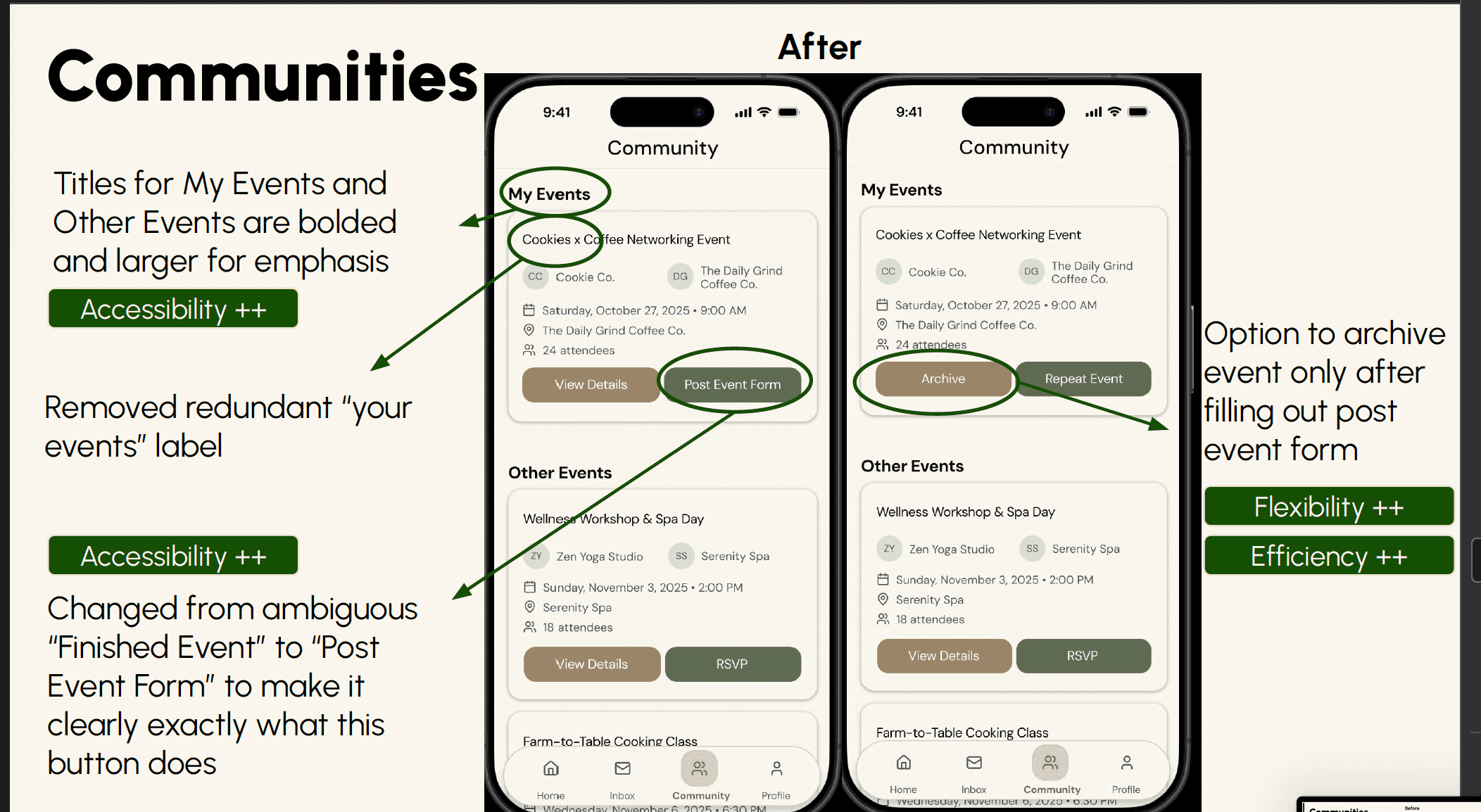

Stitch community page after hi-fi — Sev 1–2 issues addressed
After (hi-fi)
  • Transparency: AI match reasoning shown on every recommendation card — businesses understand exactly why they were paired, addressing privacy concerns around algorithmic decisions.
  • Accessibility: Three-step onboarding teaches key features. AI templates reduce friction. Guardrail confirmation before sending preserves user control (H3).
  • Empowerment: Community feed and Events tab let businesses showcase successful collaborations as social proof, normalizing partnership over competition.
  • Trust: Two-sided approval required for every Stitch event. Collaboration is opt-in and conversational first: message → trust → formal event.
"Resilience comes from relationships, not just resources. Businesses embedded in communities stayed stronger during crises like COVID."— Prof. Eric Liguori, Associate Dean, Florida State University
Stitch at Stanford CS147 demo day — presenting the project
Stitch at Stanford CS147 demo day — team and poster
Stitch at Stanford CS147 demo day — poster and exhibit
